16' Stationary Loading Chute

Adjusts from Stock Trailer to Pot Level Heights

Expect more from Winkel on every product they offer. Feature after feature will assure faster, easier livestock handling and offer maximum life from their custom, one-at-a-time manufacturing with only quality materials. Our new Stationary Loading Chute offers the livestock operator the first adjustable height chute of this size for loading/unloading to meet any size operation.

17" wide catwalk with non-slip mesh

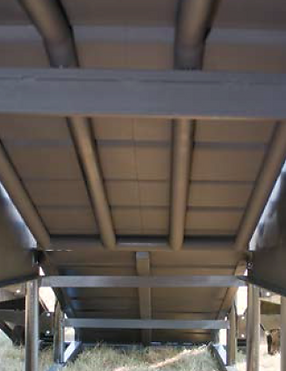

Overhead bars offer brute strength of 23⁄8" 12 ga. steel
Bottom frame made of 3" x 3" square tubing with 1/4" wall
Cable winch offers easy height adjustment and friendly pin lock to hold your desired height
Heavy-duty bumper bars
Steel construction throughout with exit gate on left side
16' full length with 4' sheet metal sides with 4, 1" tubing bars above the sides
Inside width 36" ...with 36" landing at floor front
All steel floor with sure-footing design
Left side front exit gate
Approx. weight is 2600 lbs.
